Engineering Photopolymer

Loctite 3D IND147

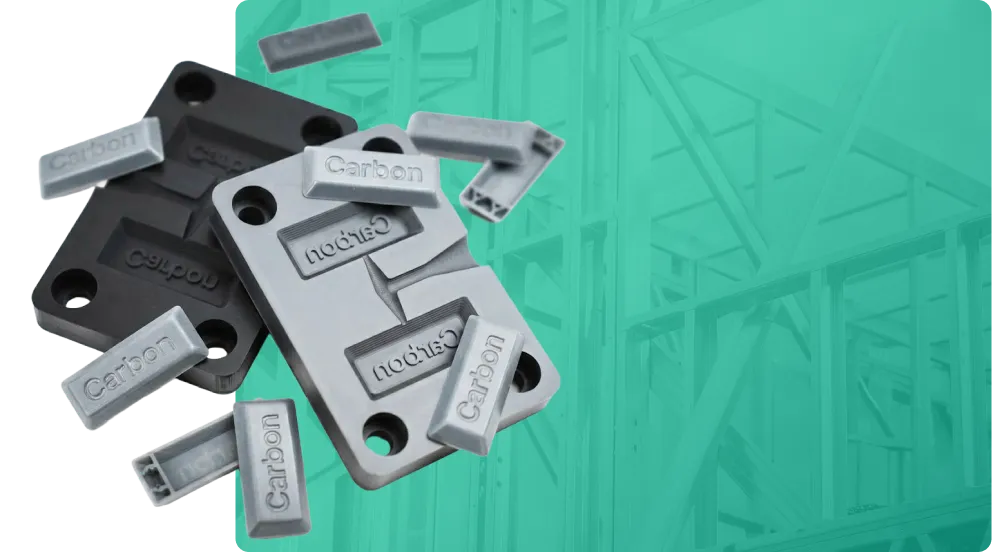

DLS Loctite IND147 — High-Temperature, Stiff 3D Printed Parts

Get Instant Quote

At a glance

Process

Carbon DLS

Color

Black

Resolution

0.075 mm

Max Print Size

189 x 118 x 326 mm

About the Material

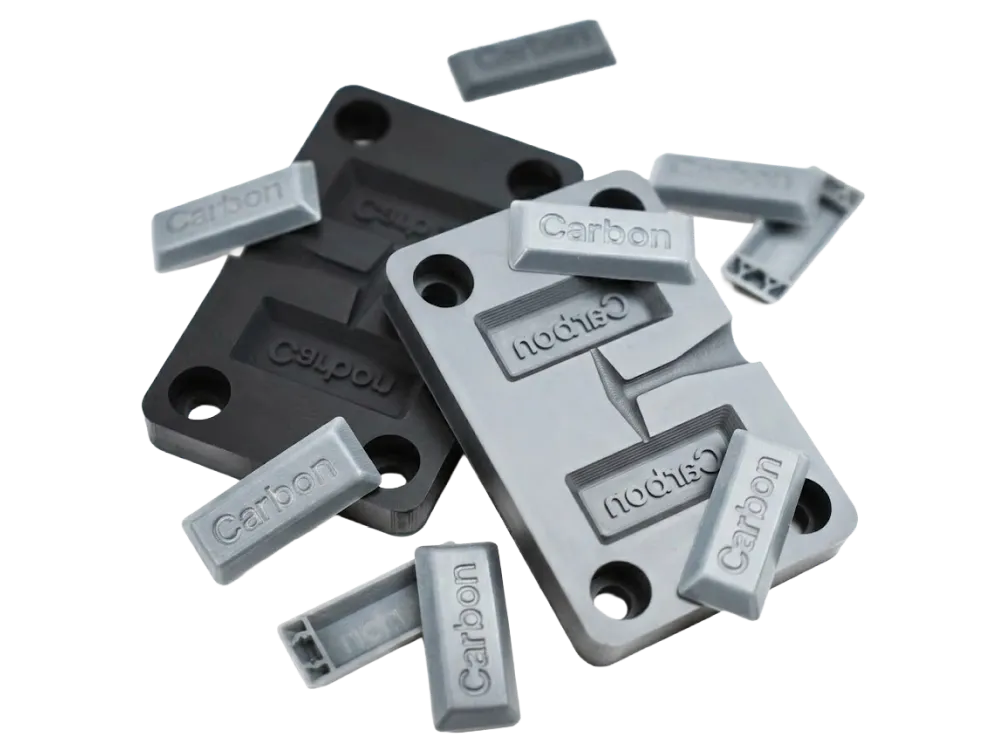

Loctite IND147 Black is a photopolymer resin with high stiffness and high temperature resistance. IND147 is a one-part resin. It’s a quick and easy material to print molds, fixtures, and manufacturing tools with smooth surface and accurate dimensions used under high heat applications in industry, consumer, and automotive markets.

Durability

Extreme Toughness Icon

Endurance

Extreme Toughness Icon

Material Properties

Ultimate Tensile Strength

67 MPa / 10000 PSI

Elongation at Break

n/a

Heat deflection temperature

291°C / 555.8°F @ 0.45 MPa
